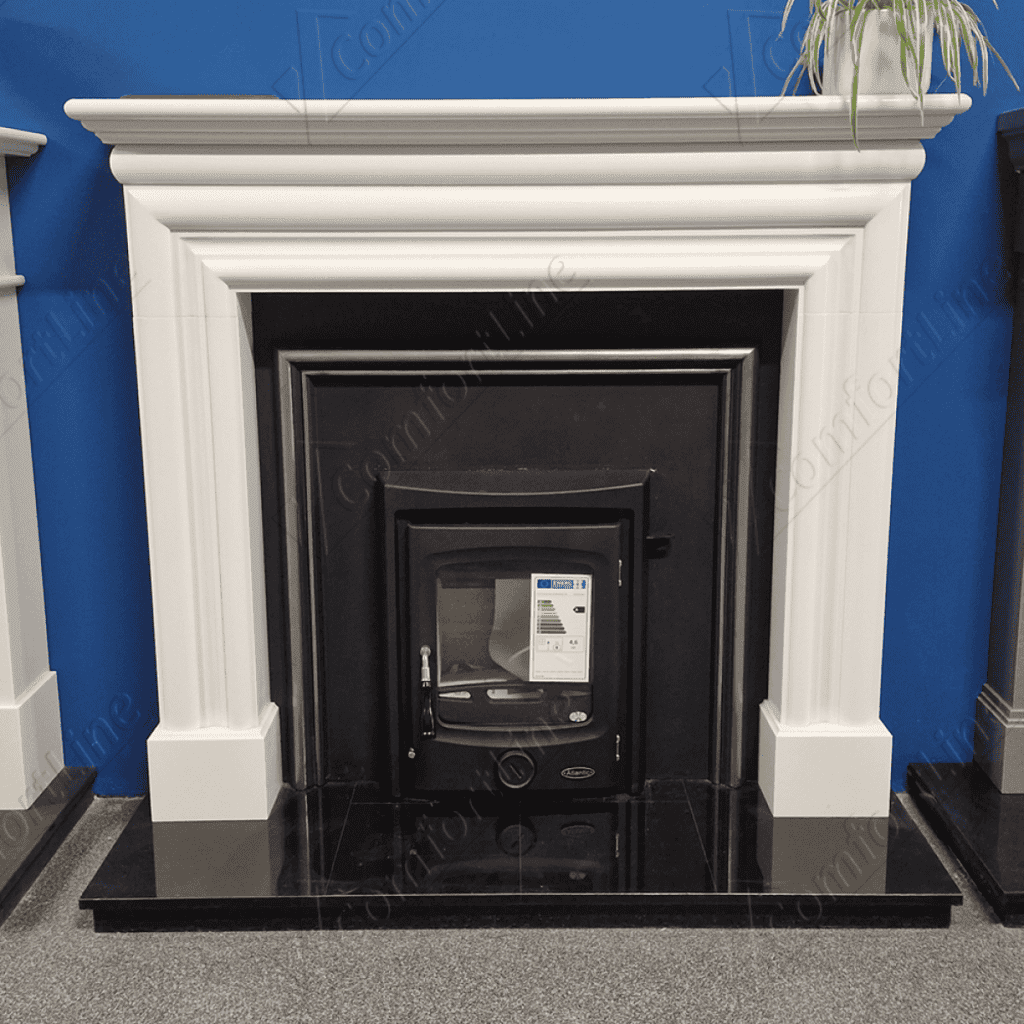

The Bay 5 uses convection based technology to heat the room, along with fitting most standard 16” and 18” fireplace openings show why one of the most popular models from Atlantic stoves. As with all Atlantic stoves it passes the most stringent Eco Design standard.

Technical Data:

Material: cast iron

Finish: High-temp. resistance paint

Fuel type: multi-fuel

Log length: max. 30cm

Flue outlet: Top rear

Flue pipe dimensions: -inside 125 mm

Approx weight: N,W.: 72 KGS; G.W.:86 kgs

Total efficiency %: wood logs – 72,9%, Anthracite – 76,8%

Nominal heat output (kW): 4,6 (wood logs), 4,8 (anthracite)

GLASS IS NOT COVERED UNDER WARRANTY
